Scripting : useful hardware info commands

Using hardware related commands in your scripts can be handy.

In this article we will review a few of them.

If you identify others which can be useful, don't hesitate to put a comment at the end:)

Command	Description
top	Displays real-time CPU along with running processes
listdev	Shows detailed information about all recognized hardware devices (PCI, ACPI, etc.)
listusb	Lists all connected USB devices with identifiers and class descriptions
sysinfo	Displays detailed system information, including CPU cores, memory usage, and system architecture.
df	Displays disk usage and available space for each mounted volume
nproc	Returns the number of logical processors available on the system
eject	Ejects removable storage devices like USB drives or optical media
bfsinfo	Displays detailed information about BFS volumes
checkfs	Verifies and optionally repairs a BFS file system for integrity issues.
iroster	Lists input devices recognized by the Input Server, including type (keyboard, pointing device) and current state

top

This command is useful when you need to identify the CPU usage on your system per process.

In a Terminal type:

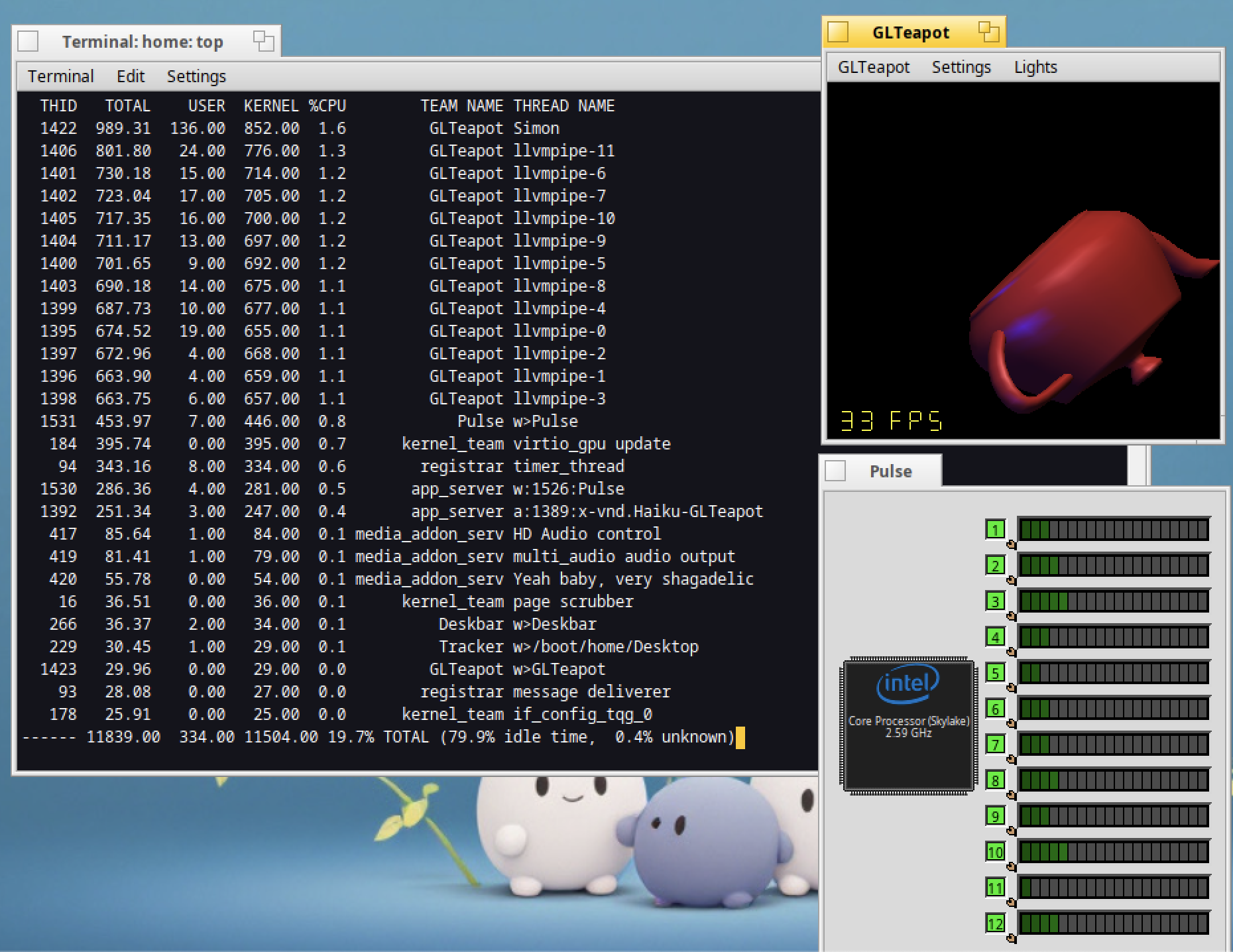

top

The above screenshot is from UTM on my MacBook Pro (Intel 12 Core).

We can see these information:

• THID : id of the thread
• TOTAL : total CPU time used (ms or ticks)
• USER : CPU time used in the user space
• KERNEL : CPU time used in the kernel space
• %CPU : percentage of CPU used by the thread
• TEAM NAME : process name (like GLTeapot)
• THREAD NAME : thread name

Hence GLTeapot is using 15,5% of the CPU if we do the sum of all the threads attached to this process.

The system is not overloaded because 79.9% is in idle mode, while 19.7% is used by all the current processes which are running in the system.

This command can be useful in case you need to identify processes which are using too much of your CPU.

As the top command is on interactive mode by default, you can use the below option to deactivate this mode:

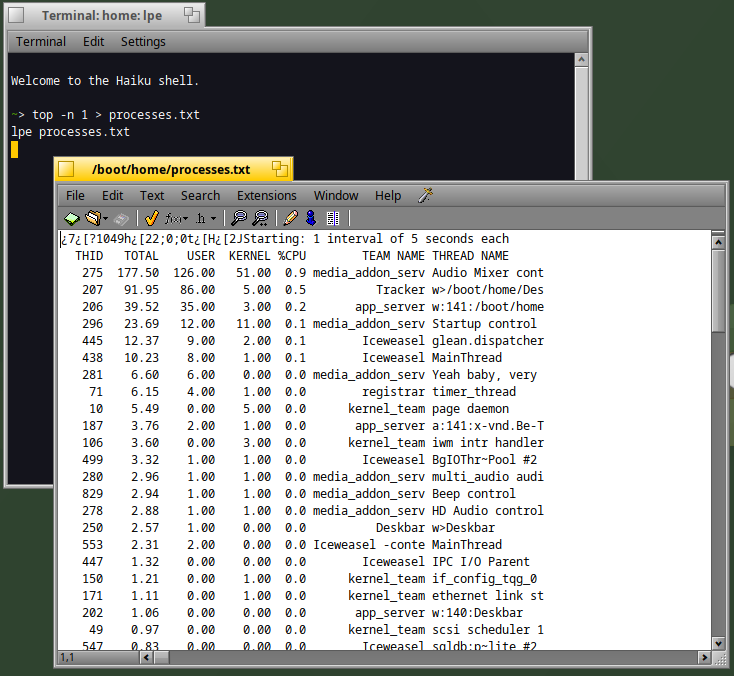

top -n 1 > processes.txt
lpe processes.txt

In the above example, you will have the current list of processes in a text file.

listdev

This command will give you information relative to your devices.

In a Terminal type :

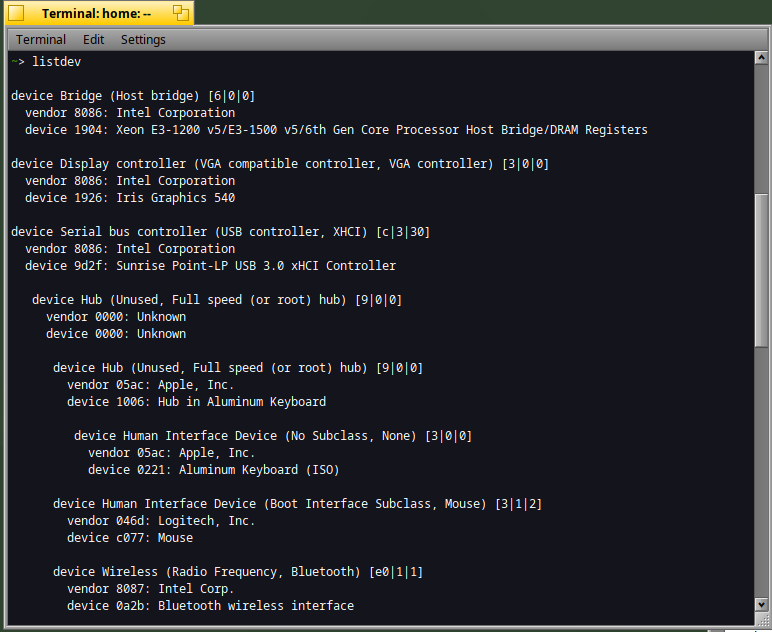

listdev

For instance, the display device is identified as an Intel Iris Graphics 540.

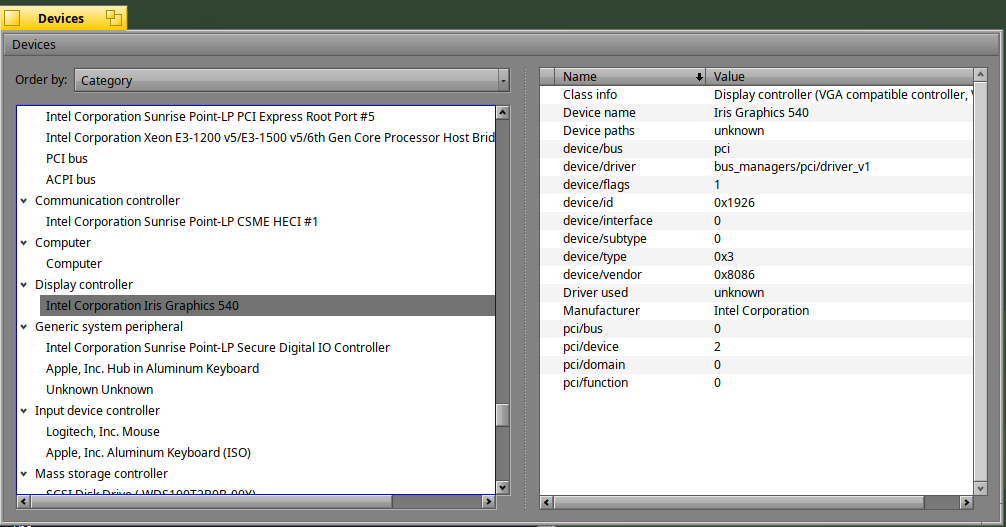

Which is confirmed, if I open the Devices application :

listusb

This command list all the connected USB devices with their identifiers and class descriptions.

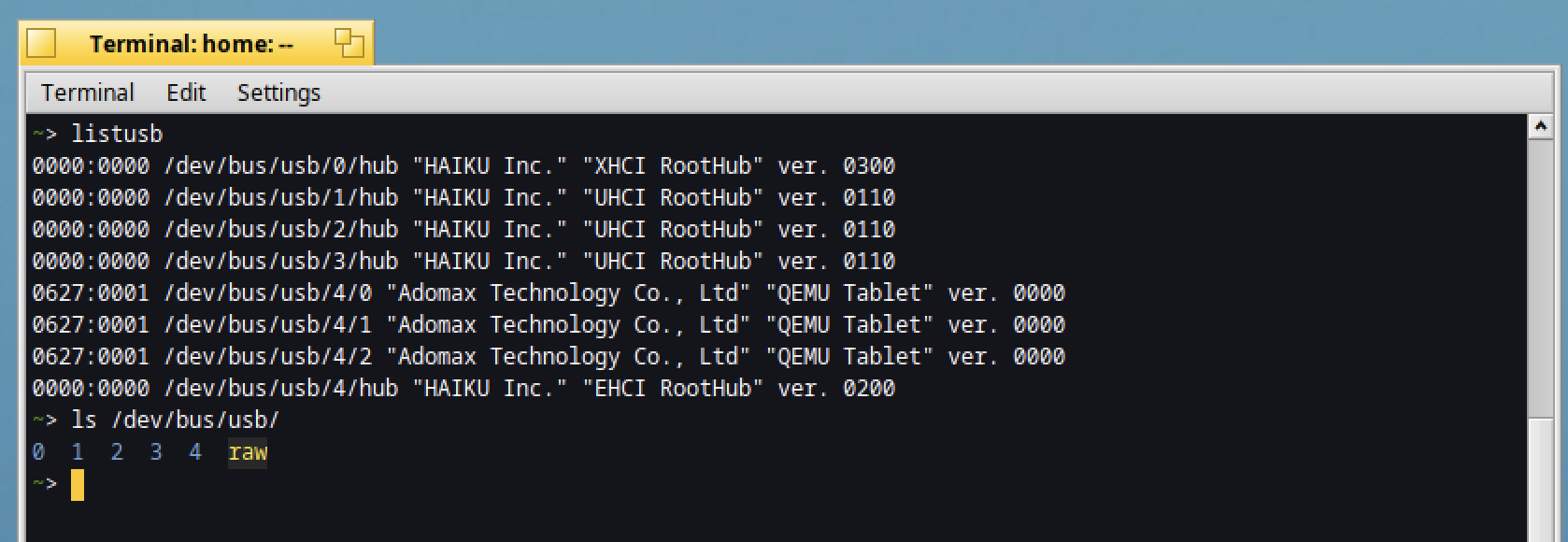

listusb

It can be useful if you need to make the link between an USB device and how to identify it like "/dev/bus/usb/4/0"

sysinfo

This is a great command when you need to have information like CPU cores, memory usage, and system architecture.

To retrieve all the possible options of this command type:

sysinfo -h

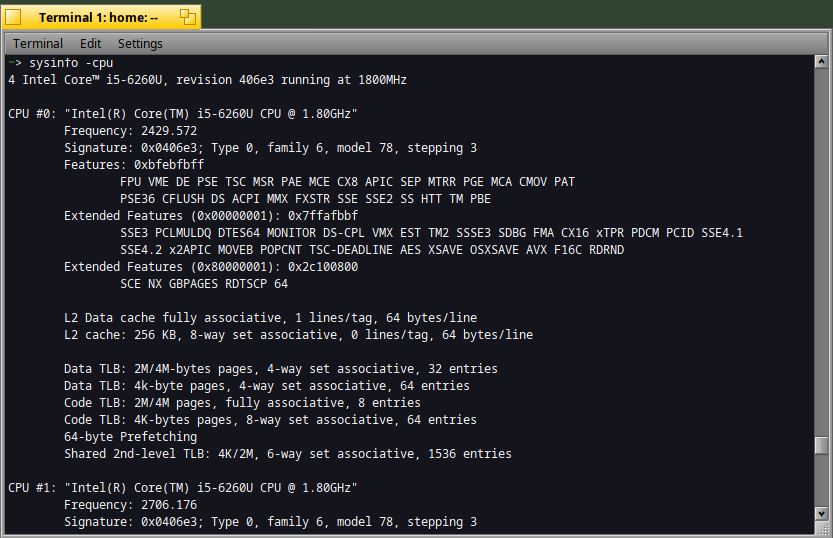

If you need to have information relative to the CPU :

sysinfo -cpu

You can also check for the memory available :

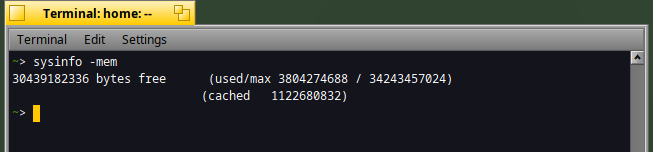

sysinfo -mem

Really useful command:)

df

This command stand for "disk free" and it displays disk usage and available space for each mounted volume.

In a Terminal type :

df

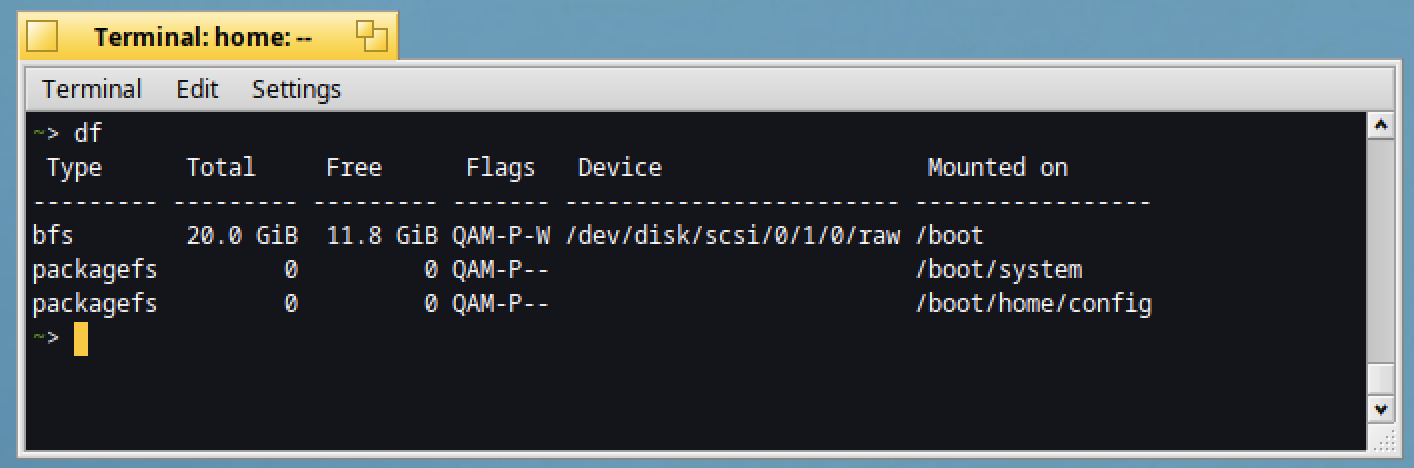

On this BFS volume of 20 Gb, 11.8 Gb are free.

The device identifier is also given (ie /dev/disk/scsi/0/1/0/raw)

nproc

A simple but nice command to return the number of logical processors available on the system.

nproc

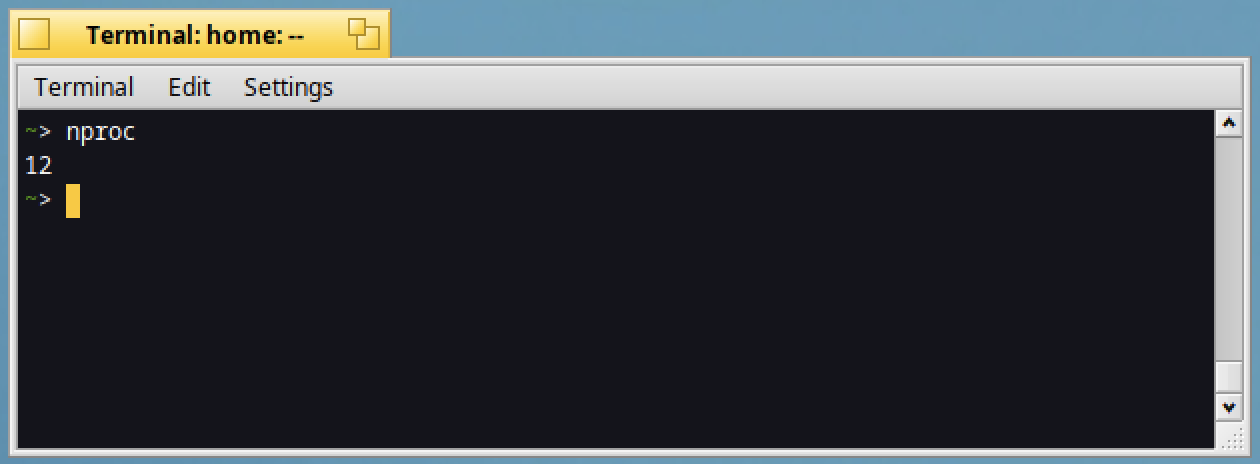

This is the number of core available via UTM on my MacBookPro :)

eject

In case you need to eject devices like USB drives or optical media, this command is for you!

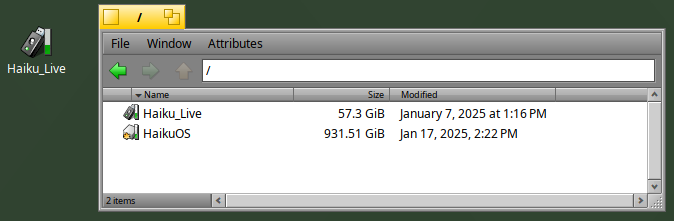

Let's suppose you have connected a Haiku live USB stick as below :

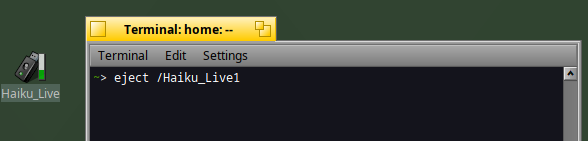

To eject it, type :

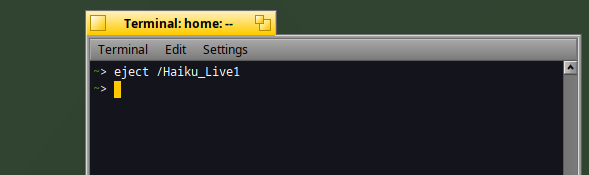

eject /Haiku_Live1

When you hit return to launch the command, the live stick will be ejected :

bfsinfo

This command displays detailed information about BFS volumes.

In a Terminal type :

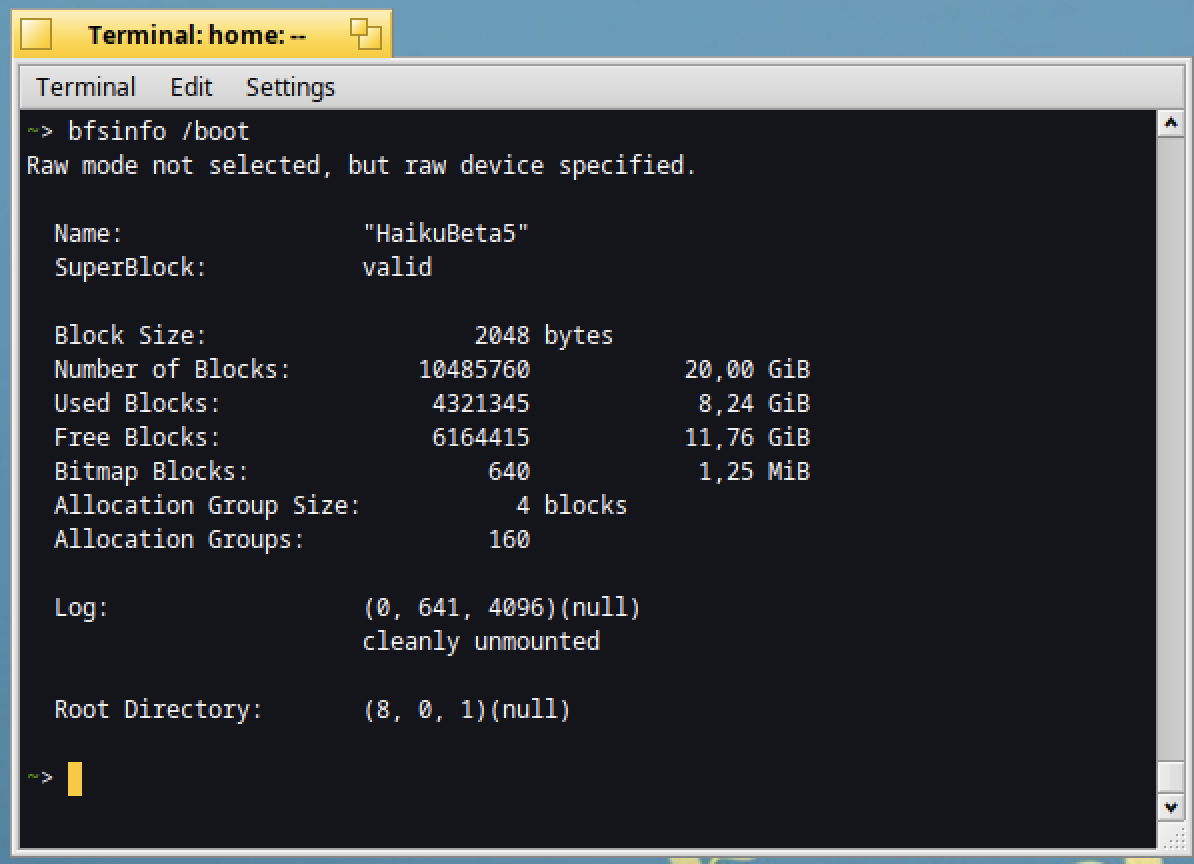

bfsinfo /boot

In this example, "boot" is the name of the BFS volume to check.

checkbfs

This command is only needed to verify and optionally repairs a BFS file system.

In a Terminal type:

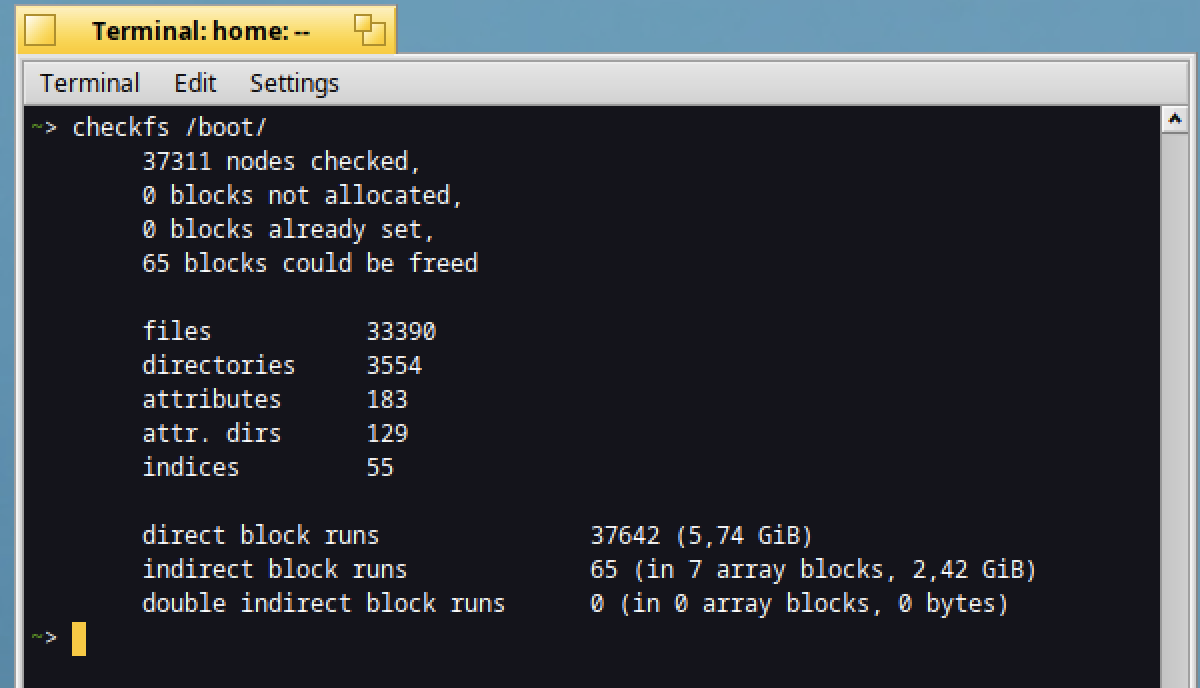

checkbfs /boot

iroster

In case you need to know which input devices are recognized by the Input Server, the iroster command is the one to use :)

In a Terminal type :

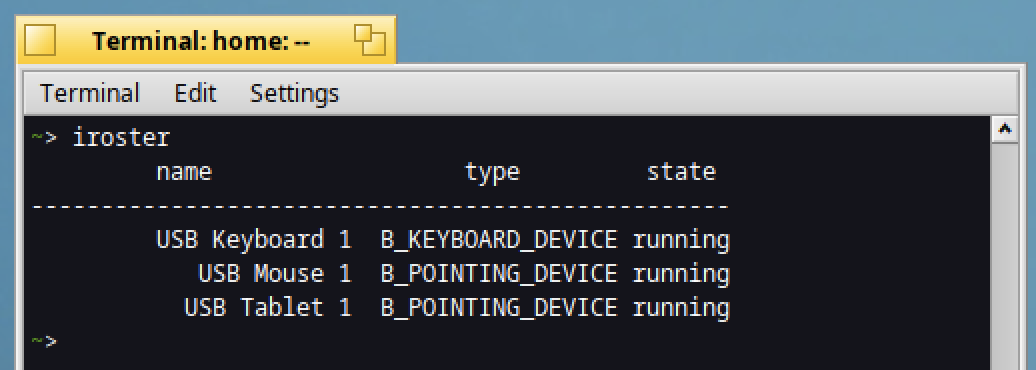

iroster

On this system, three USB devices are recognized :

• an USB keyboard
• an USB mouse
• an USB tablet (this is the trackpad of the MacBookPro)

I hope you have found this article useful, the series on the scripting commands will continue in the coming weeks:)
